Studded Ultra Inserts
Studded Ultra Inserts

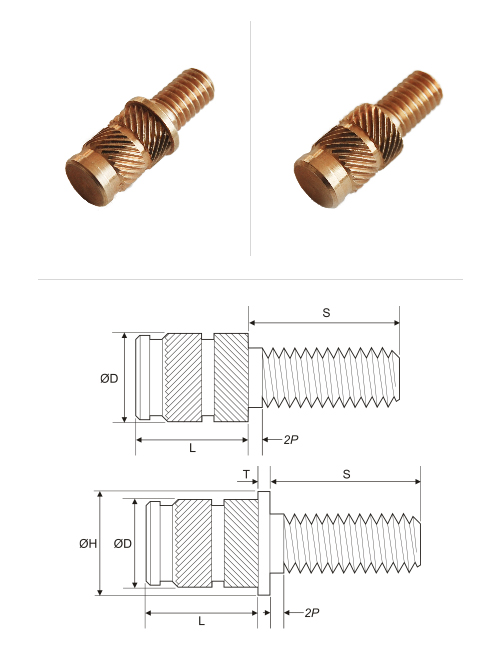

Studded brass insert with opposing herringbone knurl suitable for ultrasonic or heated press-in installation into thermoforming plastics.
Available with or without head, and with a stud length (S) of 6, 10, 16 or 25mm (actual thread length is S - 2 x threaded pitch).
All Dimensions
| Thread Size | Length (L) | ØH | ØD | T | Pilot Hole |
|---|---|---|---|---|---|
| M2 | 4.0 | 4.8 | 3.6 | 0.6 | 3.2 |
| M2.5 | 5.8 | 5.6 | 4.6 | 0.6 | 4.0 |
| M3 | 5.8 | 5.6 | 4.6 | 0.6 | 4.0 |
| M3.5 | 7.2 | 6.4 | 5.4 | 0.8 | 4.8 |
| M4 | 8.2 | 7.2 | 6.3 | 0.8 | 5.6 |
| M5 | 9.5 | 8.0 | 7.0 | 1.0 | 6.4 |
| M6 | 12.7 | 9.5 | 8.6 | 1.3 | 8.0 |
| M8 | 12.7 | 11.0 | 10.2 | 1.3 | 9.6 |
All dimensions in mm.
Pilot hole dimensions are for reference purposes only.
