Press-in Inserts
Press-in Inserts

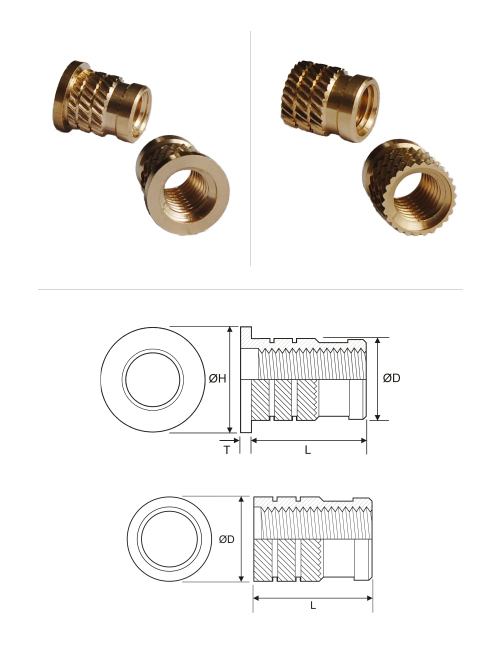

Available with or without head and suitable for heated or cold press-in installation into plastics.
Imperial thread sizes and studded versions also available.
All Dimensions
| Thread Size | Length (L) | ØH | ØD | T | Pilot Hole |
|---|---|---|---|---|---|
| M2 | 4.0 | 4.8 | 3.35 | 0.6 | 3.1 |
| M2.5 | 5.3 | 5.6 | 4.4 | 0.6 | 3.8 |
| M3 | 5.3 | 5.6 | 4.2 | 0.6 | 4.2 |
| M3.5 | 6.3 | 6.4 | 5.0 | 0.8 | 4.6 |
| M4 | 7.4 | 7.2 | 5.8 | 0.8 | 5.4 |
| M5 | 8.3 | 8.0 | 6.6 | 1.0 | 6.2 |
| M6 | 9.2 | 9.5 | 8.2 | 1.3 | 7.8 |
| M8 | 9.2 | 11.0 | 9.7 | 1.3 | 9.3 |
| M10 | 9.2 | 14.0 | 12.0 | 1.6 | 11.6 |
All dimensions in mm.
Pilot hole dimensions are for reference purposes only.
