Brass Inserts for PPR
Brass Inserts for PPR

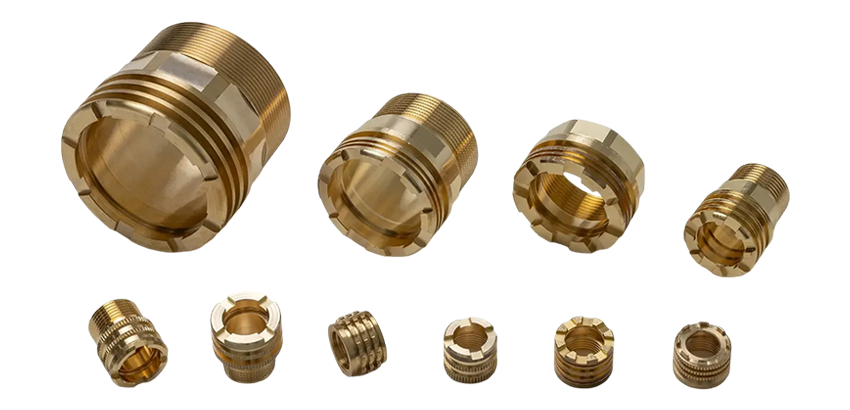

Venine Machines Private Limited manufactures brass inserts used in PPR molding for cold and hot water supply with threads from 3/8″ up to a maximum of 5″. On customer specifications and with following intervention of the company’s team of prototypists and designers, custom-made fittings can be made for all kinds of requirements.
Technical Specifications
- FEMALE:
3/8″, 1/2″, 3/4″, 1″, 1″1/4, 1″1/2, 2″, 2″1/2, 3″, 4″, 5″ - MALE:
3/8″, 1/2″, 3/4″, 1″, 1″1/4, 1″1/2, 2″, 2″1/2, 3″, 4″, 5″
Other Materials
Venine's production flexibility can work with other materials such as bronze with the following specifications.
- CC491K (CuSn5Zn5Pb5-C)
- CC499K (CuSn5Zn5Pb2-C)
- RG+ (CuSn4Zn2PS)
Surface Treatments
Brass inserts can be supplied either raw or with a nickel-plating surface treatment.
Threading of Brass Inserts
Upon customers’ request, the different threads that make up the brass inserts can be:
- R UNI EN 10226-1, UNI EN 10226-2
- Rp UNI EN 10226-1
- Rc UNI EN 10226-2
- Gas ISO 228
- NPT ANSI/ASME B1.20.1
- NPSC ANSI/ASME B1.20.1
- M ISO 262
Materials Used
Some of the most used alloys are:
- CW614N (CuZn39Pb3)
- CW617N (CuZn40Pb2)
- CW602N (CuZn36Pb2As)
- CW511L (CuZn38As)
- CW510L (CuZn42)
- CW724R (CuZn21Si3P)
- CW727R (CuZn35Sn1P)
- eZeebrass
